2013 low investment and high profit granite crusher in Zhengzhou manufacturer from China henan zhongcheng Co.,Ltd

2013 low investment and high profit granite crusher in Zhengzhou

Price:	1.0~100000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Production Capacity: 38 Set/Sets per Month

Delivery Date: within 15 working days afte...

Type: Crusher

Condition: New

Discharging size(mm): Max.5

weight(t): 26

warranty: 1 year

Packing: export standard or nude pac...

Application: Coal

Brand Name: zhongcheng

Max.feeding size(mm): 120

power(kw): 180

quality guaranty: ISO&CE

service: technical guidance

1.China high-efficient fine impact crusher
2.Versatile and efficient
3.Low energy consumption
4.Reliable operation
5.ISO

2013 low investment and high profit granite crusher in Zhengzhou

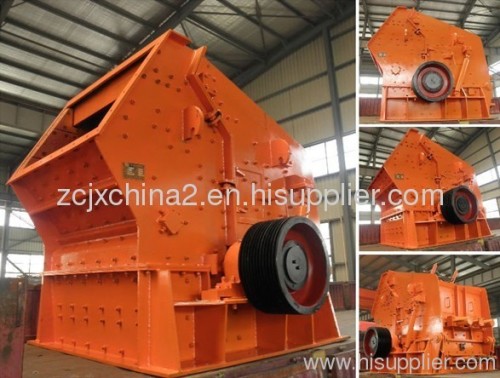

1. Introduction of impact crusher:

Impact crusher is a new and efficient type of crushing equipment. It can crush the materials whose length is less than 500mm and compressive strength is no more than 360Mpa.It is widely used in the fields of stone production line such as water, electricity, highway, etc.

2. Impact crusher's working principle:

Impact crusher is that the ore is put into the feeding opening and sliding downward along the plate; the ore will be smashed by the high-speed rotary hammer on the rotor when the screen ores are in the falling process. And with high speed along the tangent direction back toward to the first plate, continues to break the ore, the back plate will hit the ore back, then collide with other ores. Therefore the ore was crushed by the repeated impact in the first cavity, Some of the ore in the first chamber will be broken to a certain particle size, they through from the gap between the bake plate and the rotor will be put into the second broken cavity, continue to be crushed, until they change into the small size and then come out through the bottom of the crusher.

3. Impact crusher's features:

1) Large crushing ratio and high crushing efficiency

2) Low production costs and less power consumption

3) Small size and light weight

4) Cubic shape of product, adjustable output size.

4. Impact crusher's main technical parameters:

Type	Specification (mm)	Input size (mm)	Max feed size (mm)	Capacity (t/h)	Motor power (kw)
PF-0607	Ø-644×740	320×770	100	10-20	30
PF-0807	Ø-850×700	400×730	300	15-30	30-45
PF-1008	Ø-1000×800	400×830	300	30-50	37-55
PF-1010	Ø-1000×1050	400×1080	350	50-80	55-75
PF-1210	Ø-1250×1050	400×1080	350	70-120	110-132
PF-1212	Ø-1250×1250	400×1300	350	100-150	132-160
PF-1214	Ø-1250×1400	400×1430	400	130-180	160-200
PF-1315	Ø-1320×1500	860×1520	500	160-250	180-260
PF-1320	Ø-1320×2000	860×2030	500	300-350	300-375
