Large Capacity Best High-efficient Fine Impact Crusher Popular In Asia manufacturer from China henan zhongcheng Co.,Ltd

Large Capacity Best High-efficient Fine Impact Crusher Popular In Asia

Price:	1.0~100000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Production Capacity: 76 Set/Sets per Month

Delivery Date: within 15 working days afte...

Type: Crusher

Condition: New

Discharging size(mm): Max.5

weight(t): 26

warranty: 1 year

Packing: export standard or nude pac...

Application: Coal

Brand Name: zhongcheng

Max.feeding size(mm): 120

power(kw): 180

quality guaranty: ISO&CE

service: technical guidance

1.China high-efficient fine impact crusher
2.Versatile and efficient
3.Low energy consumption
4.Reliable operation
5.ISO

Large Capacity Best High-efficient Fine Impact Crusher Popular In Asia

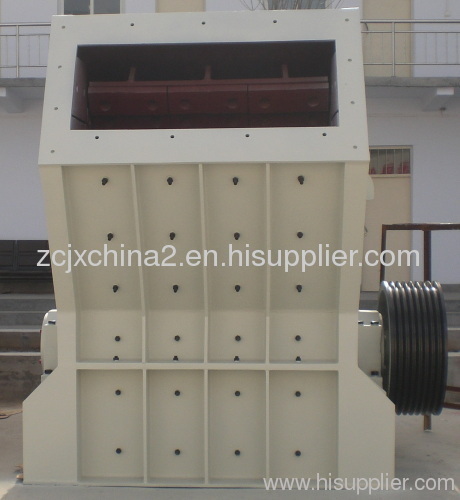

1.Introduction of high-efficient fine impact crusher:

This series of crushers has been developed and improved by incorporating the advantages of the technology both home and abroad so that the structural design is further optimized. Uses in all kinds of medium degree hardness solid material, cement industry for crushing limestone, paste, chamotte, mix material and so on. Also may be used for fine crushing the calcium phosphide, the dolomite, and pearl ore and so on. It can be widely used in the building materials, the chemical fertilizer, mining industry sector and fire-proof material and so on.

2.Working principles of high-efficient fine impact crusher:

This equipment adopts two motors, which take two rollers to rotate reversely by the decelerator. When the materials drop on the rollers through the charge hole under the friction of the rollers, they are dragged between the two rollers, grinded by the roller's crushing; the grinded materials are pushed prefatorily by the rollers.

3.Features of high-efficient fine impact crusher:

1. Small and uniform particle size

2. Large capacity, hammer, long life

3. Supporting smaller power

4. Simple process and structure, easy maintenance, smooth operation.

4.High-efficient fine crusher's main technical parameters:

Type	Material-in size(mm)	Material-out size(mm)	Yield(t/h)	Power(kw)	Weight(t)
PFX800×300	<=60	<=5(96%)	20-25	37	2.5
PFX800×600	<=60	<=5(94%)	35-50	45	4.7
PFX800×800	<=70	<=5(92%)	40-60	75	6.5
PFX1000×1000	<=80	<=5(91%)	60-90	90	8.8
PFX1000×1200	<=90	<=5(88%)	75-110	110	13.6
PFX1300×1200	<=100	<=5(86%)	120-145	160	19.5
PFX1300×1400	<=120	<=5(85%)	145-180	180	26

Service Promise:

Before-sale services: We guide customers to choose the best applicable device type and provide the advanced, energy-saving and practical technological process, and also we are responsible for the site planning and design.

On-sale services: products must be inspected strictly before sell, customers are invited to simulate and test machine on-the-spot and raise objections. We will organize delivery according to the clauses stipulated in the contract.

After-sale services: Our Company will send professional engineers to guide installation, debugging and training operators until customers are fully satisfied. Moreover, we can design and manufacture products according to customers' specific requirement.
