Widely used Double stage crusher machine in industry manufacturer from China henan zhongcheng Co.,Ltd

Widely used Double stage crusher machine in industry

Price:	1000.0~100000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean

Packing: export standard

Application: Ore

Brand Name: zhongcheng

Discharging size(mm): 3

Power(kw): 45+55

Capacity(t/h): 40-60

Production Capacity: 60 Set/Sets per Month

Delivery Date: within 15 working days afte...

Type: Belt Conveyor

Max. feeding size(mm): 120

Max. moisture(%): 20

Overall dimension(mm): 3485*1400*2254

1 Simple structure, easy operation
2 preferential price
3 professional manufacturer
4 ISO:2000
5.Simple structure

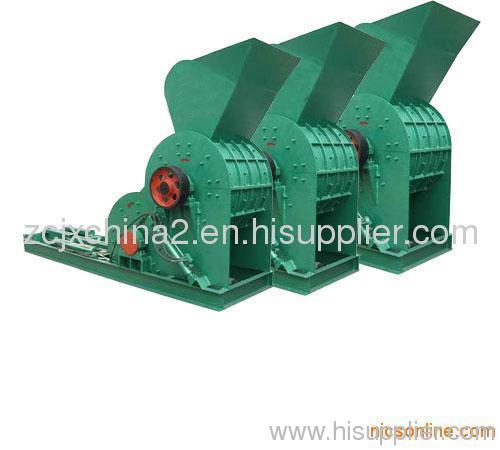

Premium quality Mini Double stage crusher made in China

1. Introduction of double stage crusher:

Our company has developed this new type and advanced double-stages crusher, which is much suitable to be used in crushing the gangue, shale, coal cinder, etc. It is based on our long period of investigation, designing and trying.

Our company is one of the biggest manufactures of machinery equipment in China, which has the advantages of high-quality technical teams, stable quality of product, excellent preference of the product, high-efficiency production and installation teams, international management and responsible service.

2. The main characteristics of the double-stages crusher:

Double rotors and double-stages crushing upstairs and downstairs, there is no screen and grate, the wet material can't be blocked up. Wear-resistant combined hammer head, special space changeable technology, and hydraulic control system.

After the materials are broken by the first rotor, the second rotor re-breaks them and they impact each other. The fine products discharge directly.

3. Features of double stage crusher:

1. Two-stage crushing with double rotors, large capacity, output size is below 3mm, the size below 2mm takes over 80%.

2. No screen and grate, no blocking for wet material.

3. With hammer head and bearings, the output size can be controlled in any time.

4. Double-axle and double-flywheel move smoothly, saving electricity more over 20%.

5. Centralized lubrication system, one-step operation, and multiple injection of oil.

6. Hydraulic turn-on off enclosure, changing hammer and maintaining are more efficiency.

4. Double-stage crusher's main technical parameters:

Type	2PC900×800	2PC800×800 (straight back)	2PC800×600 (bend back)	2PC600×400
Feeding size(mm)	<=120	<=120	<=120	<=100
Discharging size(mm)	<=3 (below2mm, above 80%)
Capacity(t/h)	50-70	40-60	40-60	15-25
Moisture	<20%
Power(kw)	55+75	45+55	45+55	18.5+22
Overall dimension(mm)	3950×1750×2280	3485×1400×2254	3625×1413×2065	2350×926×1630
