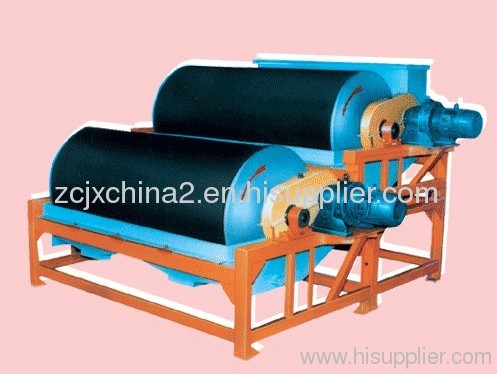

High Recovery Ratio Magnetic Separator For Iron Ore Extraction

Price:	1.0~100000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: GTB600*900

Production Capacity: 62 Set/Sets per Month

Delivery Date: 1-15 days after receiving t...

Type: Others

Handling Capacity (t/h): 8-15

Weight(t): 910

Q/C: ISO9001:2008

Means of Transport: Ocean

Packing: Export standard packing to ...

Application: Coal

Brand Name: zhongcheng

Motor Power(kw): 1.1

Guarantee period: one year

Color: You decide

1.Roller size(mm):600X1800;
2.Magnetic strength:1500;
3.Handle capacity(t/h):15-25;
4.ISO.

High Precision Magnetic Separator For Mineral Concentration

1.Brief introduction of magnetic separator:

Magnetic benefication machine also called Magnetic separator applies to wet magnetic separate for magnetite, pyrrhotite, roasted ore, ilmenite and other materials which particle size less than 3mm, it also uses for deironing operation of the coal, non-metallic minerals, building materials and other materials.

2.Magnetic Separator's structural features:
The magnetic system of the magnetic separator composes high-quality ferrite materials and rare earth magnet, the average magnetic induction of the tube is 100 ~ 600mT. According to user requirement, can provide downstream, semi-reflux, reflux-type and so many different form strong magnetic separation. The magnetic separator is of the simple structure, large handling capacity, easy operation, convenient maintenance and so on.

3.Specification and Technical Parameters of magnetic separator:

Specification and Type	Magnetic Field Strength(Oe)	Handling Capacity (t/h)	Motor Power(kw)	Machine Weight (kg)
CTB600×900	1450	8-15	1.1	910
CTB600×1800	1500	15-25	2.2	1340
CTB750×1200	1550	25-30	2.8	1490
CTB750×1800	1550	30-45	3	2050
CTB900×1800	1650	35-60	4	3000
CTB1050×2400	1650	60-95	5.5	5020
CTB1200×3000	1650	80-150	7.5	7800
CTB1500×3000	1650	120-200	11	9600
