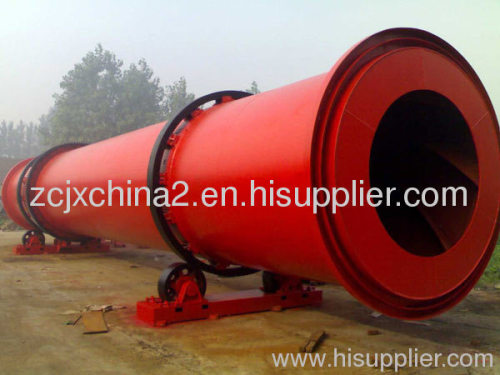

Popular rotary dryer machine on hot sale with low price manufacturer from China henan zhongcheng Co.,Ltd

Price:	1.0~100000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Production Capacity: 22 Set/Sets per Month

Delivery Date: 10-35 Days after payment

Type: Others

Rotary diameter(mm): 600

Gradient(°): 3~5

Weight(t): 5.1

Volume/cube(m3): 2.26

Quality: ISO9001:2000

Packing: Nude packing or as you wish

Application: Ore

Brand Name: zhongcheng

Rotary length(m): 8

Rotational speed(r/min): 8

Power(kw): 4

Delivery time: Quite short

1.Sand Drum Rotary Dryer
2.High efficiency dryer
3.Energy saving rotary dryer
4.Competitive price dryer
5.Quality:ISO9001

Low-input high-yield sand Rotary dryer with high productivity and competitive price

1.Introduction of indirect Rotary dryer :

The rotary dryer made by our company is mainly used in building materials, metallurgy, chemical plant, cement plant for drying of limestone slag, coal powder, slag, clay stone. This dryer is made up of rotary body, lifting blade, driving device, supporting device and sealing ring.

2.Advantages of indirect Rotary dryer :

1. reasonable structure

2. high efficiency

3. low energy consumption

4. convenient transportation

3.Main technical parameters of indirect Rotary dryer :

Type	Rotary diameter (mm)	Rotary length (m)	Gradient (0)	Rotational speed (r/min)	Weight (t)	Power (kw)	Volume (m3)
φ0.6×8	φ600	8	3-5	8	5.1	4	2.26
φ0.8×10	φ800	10	3-5	7.2	6.9	4	5.02
φ1.0×10	φ1000	10	3-5	6.73	7.5	5.5	7.85
φ1.2×12	φ1200	12	3-5	5.8	13.1	11	13.31
φ1.5×12	φ1500	12	3-5	4.8	22.3	15	21.2
Φ1.8×14	Φ1800	14	3-5	3.2	45.8	3.	48.22
φ2.2×18	φ2200	18	3-5	3	50.3	37	70.43
φ2.4×20	φ2400	20	3-5	2.83	78.4	45	90.43
φ2.8×24	φ2800	24	3-5	2.59	97	75	147.8
