Simple structure and little noise belt Conveyor machine 500 manufacturer from China henan zhongcheng Co.,Ltd

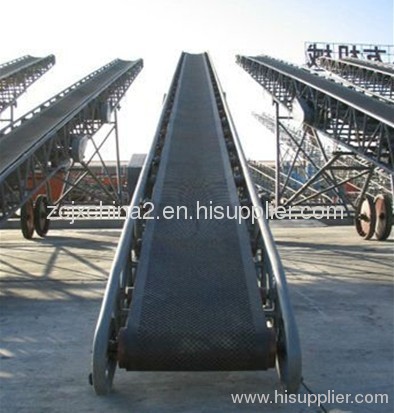

Simple structure and little noise belt Conveyor machine

Price:	1000.0~100000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 500

Production Capacity: 100 Set/Sets per Month

Delivery Date: within 15 working days afte...

Type: Belt Conveyor

Capacity(m3/h): 25-143

Motor power(kw): 1.5-3

price: competitive

Means of Transport: Ocean

Packing: export standard

Application: Ore

Brand Name: zhongcheng

Roller diammeter(mm): 500

Certification: ISO:CE

delivery: safe and prompt

1 Simple structure, easy operation
2 preferential price
3 professional manufacturer
4 ISO:2000
5.Simple structure

Simple structure and little noise belt Conveyor machine

1.Working characteristics:

In the process of industrial production, it can be used as a continuous production link among mechanical equipments, realizing continuity and automation of the production process, enhance the productivity and lessen the intensity of labor.

It adopts the friction transmission principle to work. It has these features: giant transporting ability, long transporting distance, steady transportation and there is no relative movement between materials and the convey belt.

2.Advantages:

It possesses these merits: little noise, simple structure, easy maintenance, low energy consumption and standard components, etc. therefore, it is widely used in mining, metallurgy, chemical, foundry, building materials and other transporting industries, production lines, the hydropower station construction site and other production departments.

3.Application scope:

It applies for conveying loose materials or parted items. According to the transporting technical requirements, it can transport with single conveyor or multi-conveyor, and can also form a horizontal or inclinated system if connected with other transporting equipments, it can meet the working lines needs of different layouts.

4.Basic components:

The machine is mainly composed of machine frame, transporting belt, belt roller, tension and rotation devices, etc. The main body adopts high quality steel plates, and the machine rack forms according to the height differences between front and hind legs, the conveying belt is fixed at an inclination angle. The rack is equipped with belt roller, supporting roller etc. to drive and support the transmission belt. There are two driving modes: deceleration motor and electric cylinder.

5.Technical Parameters:

Specification	Width of belt (mm)	Capacity (t/h)	Motor power (kw)
B400	400	30-60	7.5-15
B500	500	40-80	15-30
B650	650	80-120	15-45
B800	800	120-200	22-75
B1000	1000	200-320	4-11
B1200	1200	320-480	5-22
